ELAC Debut F6

AudioStereo logo

ELAC Debut F6

na

  << variante >>
ELAC FS 187 ATC SCM 11 disponibile in Demo XAVIAN Gran Colonna
FS 187 Gran Colonna

  • Midbass: 3 x 6.5-inch woven aramid-fiber cone with oversized magnet and vented pole piece
  • Tweeter: 1-inch cloth  dome with custom deep-spheroid waveguide

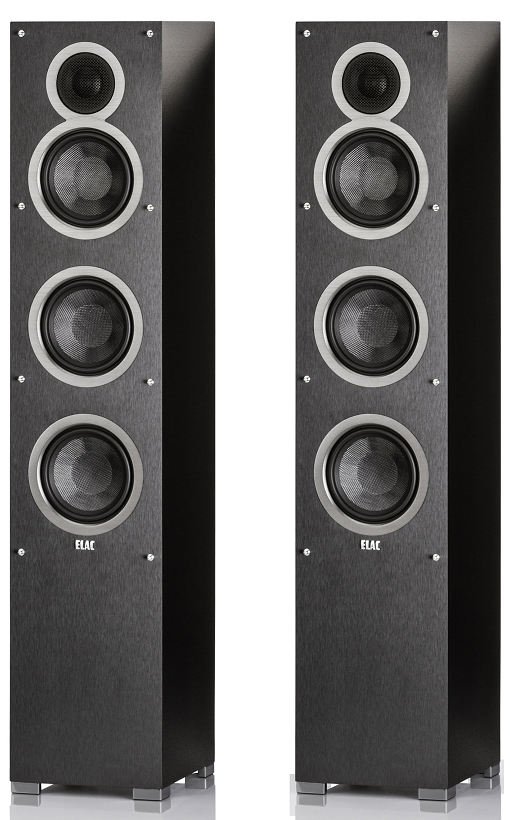

ELAC Debut F6: The Debut benchmark

The Debut F6 loudspeaker combines the advanced drivers of the B6 bookshelf in a floorstanding 3-way, bass-reflex design that takes Debut performance to the limit. With sound that rivals speakers costing many times more, the F6 shows that quality components and superior engineering are a winning combination every time. Combine a pair of F6 with a Debut powered subwoofer for a truly stunning two-channel audio system.

Braced MDF Cabinet Minimizes Vibrations, Aramid-Fiber Cones Add Strength and Smoothness
Two vertical braces strengthen and stiffen the cabinet, helping minimize unwanted vibrations that can discolor music or movie content. Woven aramid fiber offers a superior stiffness-to-weight ratio and damping over common polypropylene or paper cones. The added strength allows more flexibility in design to achieve a smoother, extended frequency response.

Andrew Jones-Designed Drivers Match Intricate Crossover, Spheroid Waveguide
Andrew Jones custom-designed both the tweeter and bass driver to deliver an exceptional audio experience that can't be delivered with typical off-the-shelf parts. A custom crossover with audio-grade components ensures smooth transition between drivers. In addition, a custom-designed tweeter waveguide with a deep spheroid profile improves directivity control and shields the tweeter wavefront from cabinet diffraction.

Specifications
Dimensions H × W × D
1092 × 216 × 254 mm
Weight
21.2 kg
Principle
3-way, bass reflex
Woofers
3 × 165 mm cone, (mag. shielded)
Tweeter
1 × 25 mm silk dome, (mag. shielded)
Maximum Power Input
150 W
Crossover Frequencies
100 / 3,000 Hz
Sensitivity
86 dB / 2.83 V / 1 m
Nominal Impedance
6 Ω (minimum 5.4 Ω)
Frequency Range
acc. to IEC 268-5
39··· 20,000 Hz
Cabinet Finish
Black Brushed vinyl
ELAC Debut series brochure

Treble Unit

ELAC Debut Tweeter: 1-inch cloth dome with custom deep-spheroid waveguide
ELAC Debut B5 Tweeter: 1-inch cloth dome with custom deep-spheroid waveguide

1-inch cloth-dome deep-spheroid waveguide tweeter with oversized magnet

A custom-designed tweeter waveguide with a deep spheroid profile improves directivity control and shields the tweeter wavefront from cabinet diffraction.



Midbass Unit

ELAC Debut Midbass: 5.25-inch woven aramid-fiber cone with oversized magnet and vented pole piece
ELAC Debut Midbass: 5.25-inch woven aramid-fiber cone with oversized magnet and vented pole piece

3x 6.5-inch woven aramid-fiber woofers with oversized magnets and vented pole pieces

Woven aramid fiber offers a superior stiffness-to-weight ratio and damping over common polypropylene or paper cones. The added strength allows more flexibility in design to achieve a smoother, extended frequency response.
