ELAC Miracord 70

AudioStereo logo
ELAC Loudspeakers "Finest German Engineering"

Miracord 70

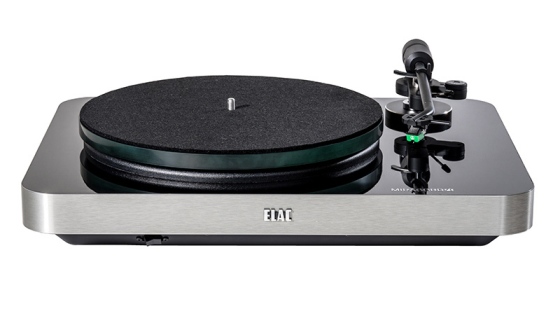

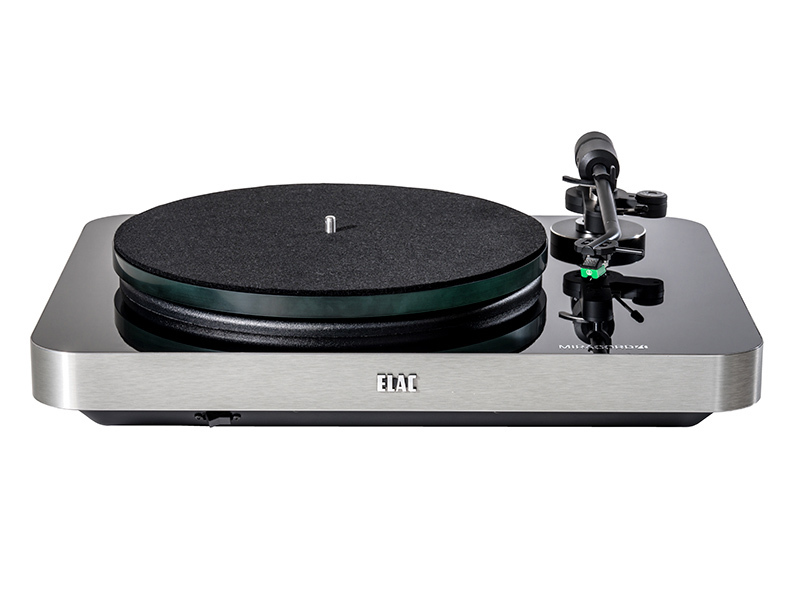

ELAC Miracord 70 turntable

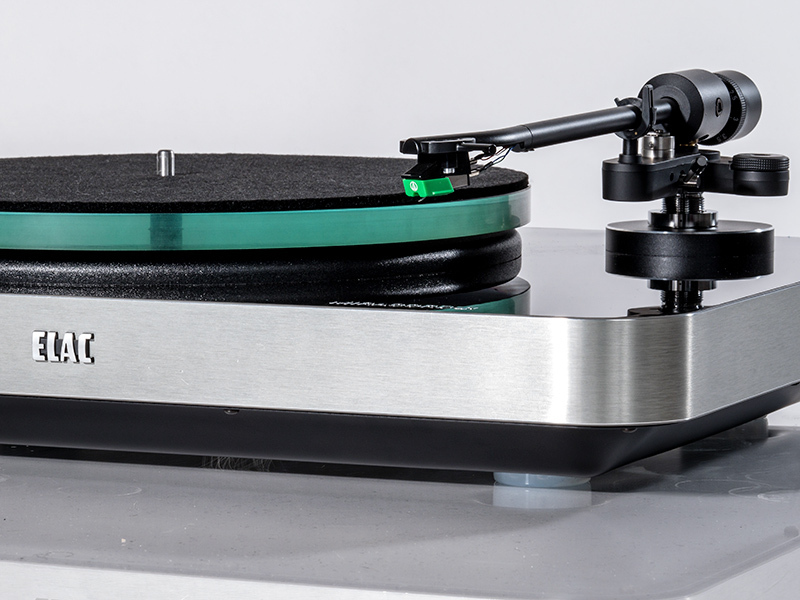

ELAC Miracord 70 pic2 ELAC Miracord 70 pic4 ELAC Miracord 70 pic3 ELAC Miracord 70 pic5

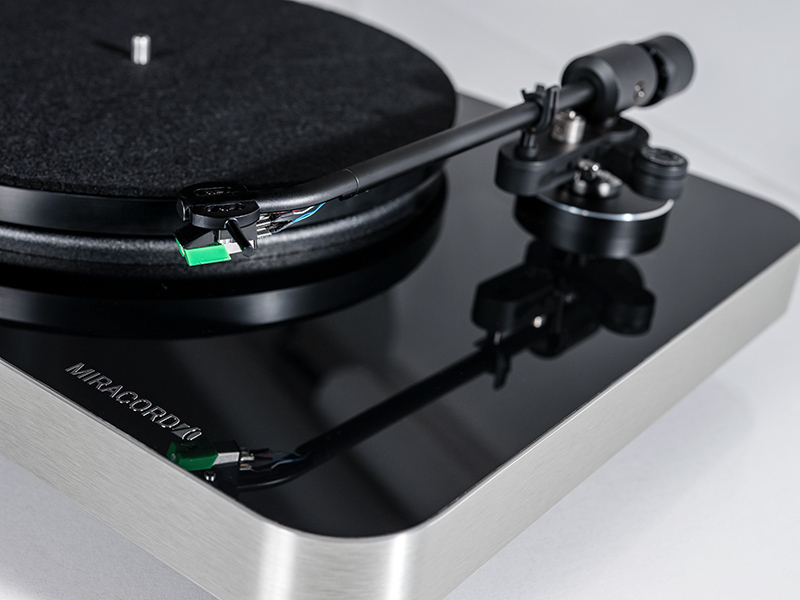

ELAC Miracord 70 pic7 ELAC Miracord 70 pic6 ELAC Miracord 70 pic6 ELAC Miracord 70 pic10
na

ELAC Miracord 70 - Hi-Fi CHOICE review

ELAC Miracord 70

ELAC Miracord 70 - Hi-Fi CHOICE review
  • The sheer poise of the Miracord 70 makes it an alluring prospect
  • This is a well-engineered and beautifully made turntable that offers a fine performance. The inclusion of a good-quality cartridge is a big plus and yet the Miracord 70 is more than capable of revealing the benefits of transducer upgrades, if desired. As plug-and-play combinations go, this is one of the best I’ve encountered
  • LIKE: Sophisticated bass; build quality; overall package at the price
  • WE SAY: A super sounding, ready-toplay turntable package

  • Tonearm: Aluminum tonearm combined with a point mounting system that uses a ceramic ball as a central element, like the one on the Miracord 90
  • Anti-Skating Mechanism: Adjustable in several steps for perfect stereo imaging
  • Cartridge System: AT95E by Audio-Technica®
  • Platter: High-mass glass, black ceramic coating on the underside
  • Drive Unit: extremely smooth synchronous motor by Premotec
  • Plinth: Solid MDF for strong foundation

Miracord 70: The next stage of the vinyl comeback

The new Miracord 70 sees ELAC expand its turntable offering and embark on the next stage of its successful return to the world of vinyl.

The solid MDF plinth with a high-gloss black finish provides a strong foundation. A belt-driven sub-platter, powered by an extremely smooth synchronous motor by Premotec, supports the 2.6 kg platter made of glass. A black ceramic coating on the underside of the platter gives it a dark translucent appearance that accentuates its three-dimensional form. Combined with a point mounting system that uses a ceramic ball
as a central element, like the one on the Miracord 90, the overall structure ensures exceptionally smooth running and outstanding immunity to external influences.

Specifications
Dimensions H × W × D
140 × 465 × 365 mm
Weight
11 kg
Principle
Belt-drive turntable
Cartridge
AT95E by Audio-Technica®
Frequency Range
20··· 20,000 Hz
Tracking force
20 ± 5 mNg ≙ 2,0 ± 0,5 g
DC resistance
400 Ω ± 20%
Coil impendence
1 kΩ ± 20% at 1 kHz
Recommended load
47 kΩ
Output voltage  3,5 mV
Channel separation  > 20 dB
Selectable speeds 33 and 45 rpm
Outputs 2 gold-plated RCA connectors, gold-plated ground connector
Frequency Range
20··· 25,000 Hz
Power Supply
24 V AC, 6 VA
Finishes
silver chassis and gloss-black plinth
ELAC Miracord 70 brochure
Brochure


Miracord 70 Features:

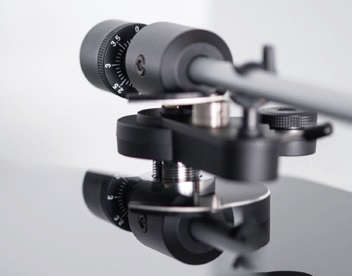

ELAC Miracord 70 - Aluminum tonearm

The aluminum tonearm comes
fi tted with the audio-technica®
AT95 MM cartridge system and
delivers a sound that is full of
vitality.

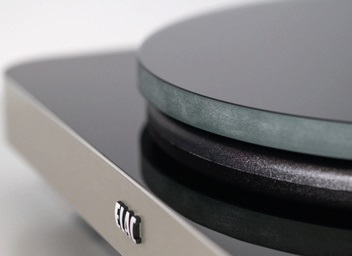

ELAC Miracord 70 - 2.6 kg platter made of glass
The belt-driven Miracord 70
employs the sub-platter principle in
conjunction with a high-mass, 2.6 kg platter made of glass, black ceramic coating on the underside.

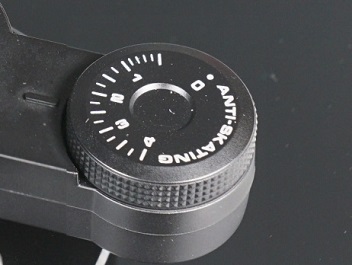

ELAC Miracord 70 - Anti-Skating
The Anti-Skating and the entire
assembly is driven by a powerful
synchronous motor, which
is decoupled from the plinth to
guarantee fl awless tracking and
exceptionally smooth running.
