XAVIAN XN Piccola

AudioStereo logo
XAVIAN XN Piccola cherry finish
XAVIAN XN Piccola mix

na

  << variante >>
XAVIAN XN Carisma Stereo Setup ATC SCM 20 SL ELAC FS 249
XN Carisma FS 249

XAVIAN XN Piccola - Hi-Fi i Muzyka (Poland) review cover
XAVIAN XN Piccola - Hi-Fi i Muzyka (Poland) review verdict

Xavian XN Piccola

XAVIAN XN Piccola - Hi-Fi i Muzyka (Poland) review
  • Piccola is a very musical column. Even istening to known CDs it gave me great pleasure, as snacking the favorite dessert during childhood, whose unique flavor then walked me through the years.
  • Also with rock Xavian did not lose a beat. Admittedly, I did not dare to listen to Rammstein - somehow did not fit visually to tanz metal - but no problems coping with the recordings of Pink Floyd, Led Zeppelin, Peter Gabriel and Joe Bonamassa. Anyway, long solos that last for Piccola seemed more flattering than previously known.
  • No doubt Xavian XN Piccola have a soul, as is the case with the old Italian masters of instruments and with some legendary cars. Their components are nothing special, and made ​​in whole by any other designer would give just a good column. Roberto Barletta team, however, created unique speakers and that differentiates artists from craftsmen.
XAVIAN XN Piccola - Hi-Fi Choice (S. Korea) review XAVIAN XN Piccola - Hi-Fi i Muzyka (Poland) review
XAVIAN XN Piccola - AUDIOVideo (Czech) review XAVIAN XN Piccola - Hi-Fi Choice (Poland) review
  • Tweeter: Scan-Speak Ring Radiator, 26 mm voice coil, copper shortcircuiting ring
  • Midbass: 180 mm custom Scan-Speak, paper membrane with carbon fibers, 42 mm voice coil, Symmetrical Drive (SD-1) low-distortion motor and phase plug for improved phase linearity
  • Cabinet: 22 mm MDF, handcrafted, bituminous damping, massive aluminium bass-reflex port
  • Terminals: XAVIAN binding posts

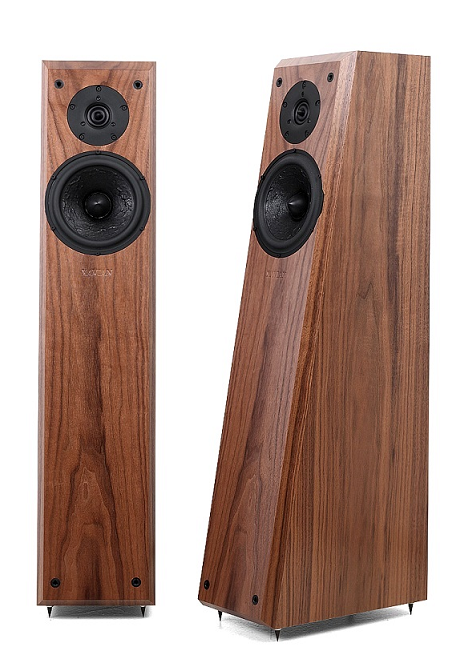

XN Piccola

It is a true pleasure to listen to XN Piccola.

Thanks to its ideal compact size the installation is particularly simple. In close collaboration with the prestigious Danish Scan-Speak, Xavian has developed a unique custom made mid-woofer 18W/Xavian, one of the best on the market, at all. 18W/Xavian works together with the well known Ring Radiator, the original driver matching together the advantages of the dome and planar technologies. The sound is rich in music colours, coherent and naturally dinamic.

We are proud that XN Piccola is completely developed and hand-made in the Czech Republic.

Specifications
Mid-bass frequency unit 180 mm custom Scan-Speak, made to Xavian specifications, paper membrane with carbon fibers, 42 mm voice coil, SD-1 low-distortion motor
High frequency unit selected Scan-Speak Ring Radiator - 26 mm voice coil, copper shortcircuiting ring
System type 2 ways damped bass-reflex, massive rear aluminium port
Cabinet 22 mm MDF, handcrafted, bituminous damping
Frequency response ( -3 dB on reference axis ): 44 - 30000 Hz
Connection 1 pair of singly mounted XAVIAN binding posts
Nominal impedance 8 ohms
Crossover frequency 2600 Hz
Sensitivity ( 2,83 V / 1m ) 85 dB
Recommended power amplification 30 - 120 W
Dimensions (HxWxD) 900 x 196 x 320 mm
Net weight (1 unit) 22 kg
Finishes
cherry, maple, walnut, nero, bianco real wood

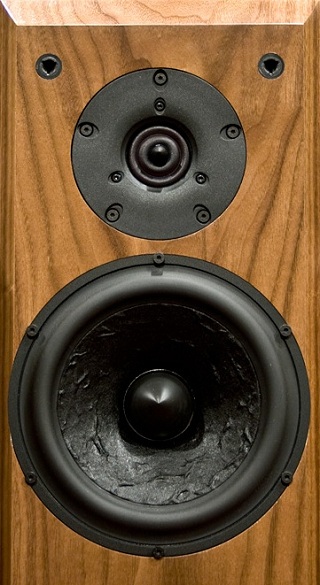

XAVIAN XN Piccola drivers

Treble Unit

- Selected Scan-Speak driver
- 26 mm voice coil Ring Radiator
- Copper shortcircuiting ring
- Wave-guide center plug
- Enlarged non-reflective rear chamber

Midbass Unit

- 180 mm custom Scan-Speak driver
- Paper membrane with carbon fibers
- Symmetrical Drive (SD-1) low-distortion motor
- Phase plug for improved phase linearity
- Die cast Alu Chassis

Crossover

Completely hand-made in-house by Xavian in Prague - extremely precise and accurate filters.

Features:
- Audio Grade high quality components
- Air wounded Inductors on all sections
- Film Capacitors on all sections
- 250V and 400V Polypropylene Film Capacitors, stable capacity, low loss. low tolerance

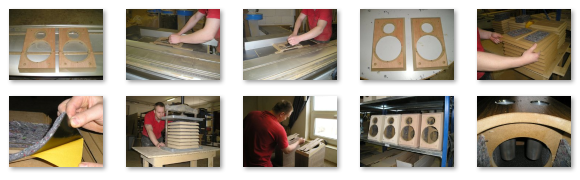

Cabinet technology
XAVIAN Cabinet technology mix
XAVIAN Cabinet technology mix 3



XAVIAN XN Piccola Stereo Setup XAVIAN XN Piccola Stereo Setup

ATC P1 ATC SIA2-150 Integrated Amplifier Cyrus 8a DAYENS Ecstasy III Integrated Amplifier
P1 SIA2-150 Cyrus 8a
